<img height="1" width="1" style="display:none" src="https://www.facebook.com/tr?id=2883495335153851&amp;ev=PageView&amp;noscript=1"> EK3- Horwin Electric Mopeds Battery Packs For Sale, Waterproof and High Security.
EK3_banner

95 km/h

Top Speed

150 km

Range

*2 Batteries

6.3 KW

Peak Power

Customized Decals

Color Customization

Customization of vehicle brand logo

Front Rack

Left and right backpack racks

Rear tailstock

* Complete vehicle renovation design, intelligent system linkage deployment, customized complete solution (with minimum order quantity)

EK3_01

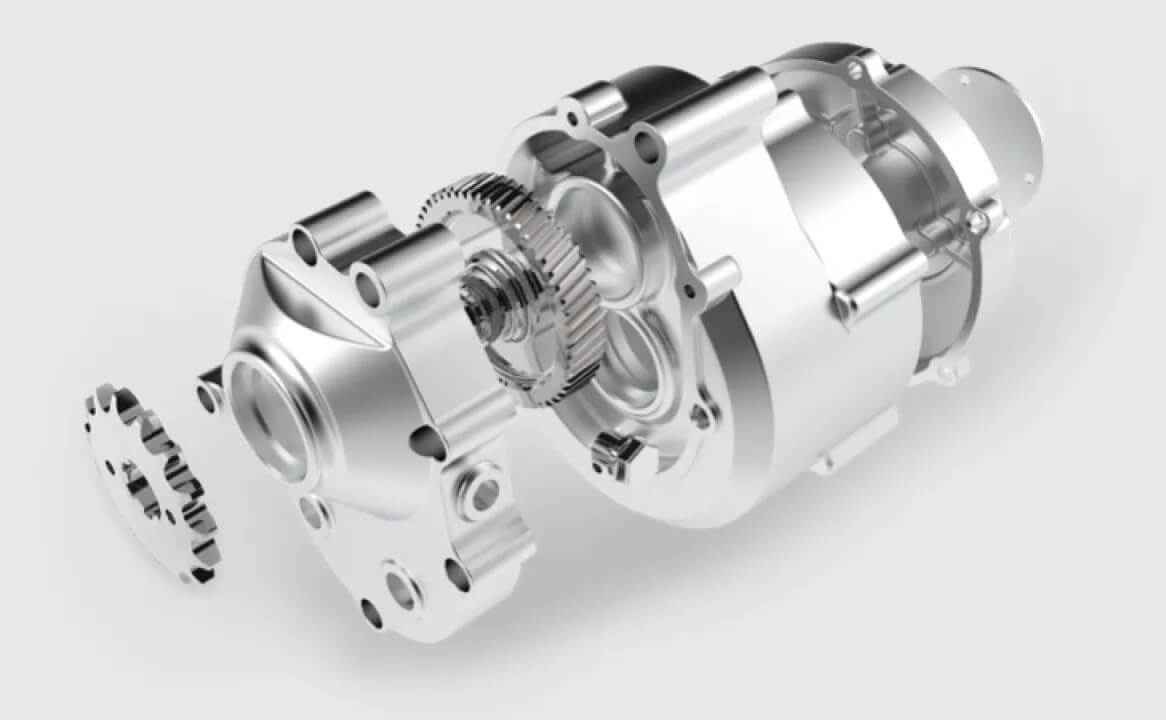

Highly efficient & economical

The centre motor generates 6.3 kW of power at a top speed of 90 km/h. Acceleration from 0 to 60 km/h in 6 seconds.

EK3_02

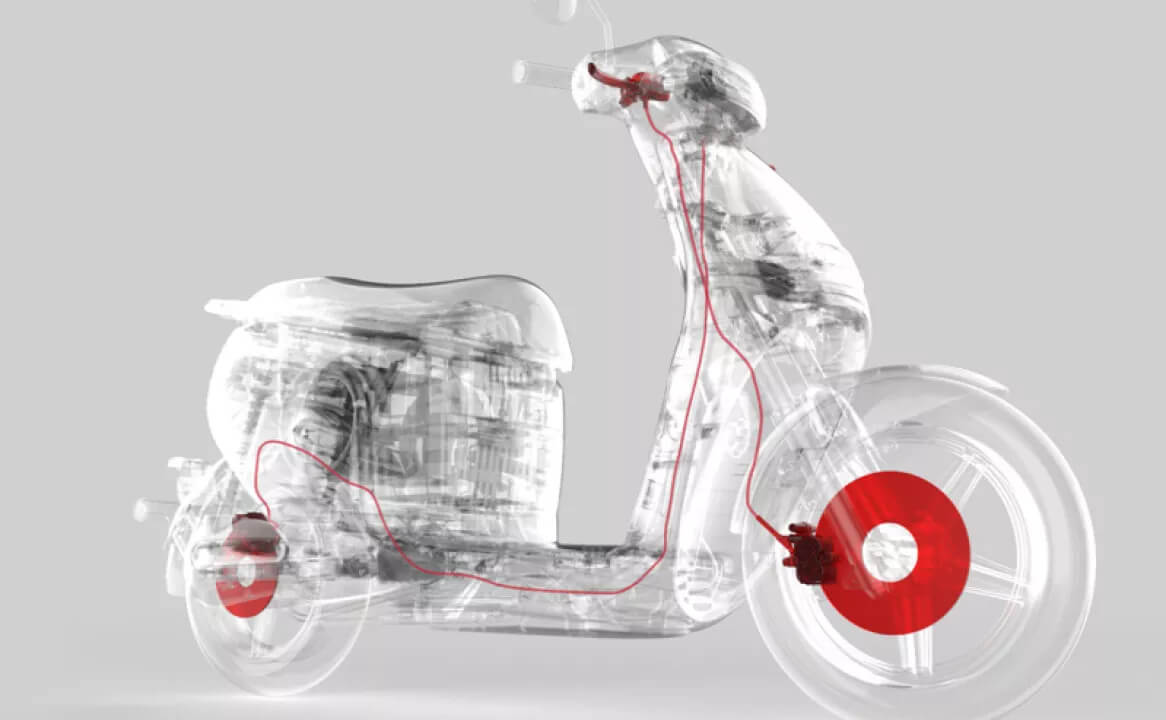

CBS brake system

The front and rear disc brakes shorten the braking distance. The CBS braking system ensures safe braking at high speed.

EK3_03 (1)

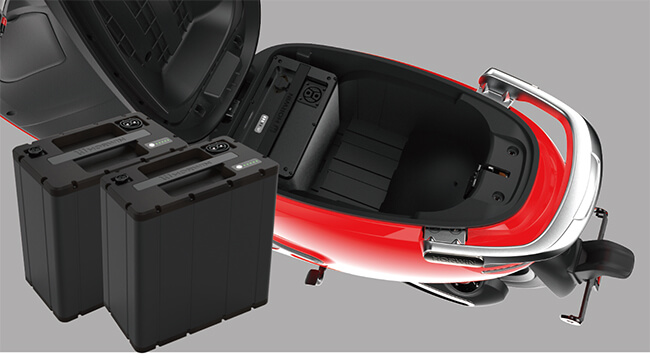

BATTERY WITH ITSOWN MANAGEMENT

The EK3 scooter can be equipped with two lithium-ion batteries that are easily removable.The SOc monitoring system and the modern battery management system can prevent malfunctions.


Among other things, they provide protection against over-charging, discharging, over-voltage, short circuitand monitor the temperature of the batteries. The battery life is over 1000 cycles. The standard chargingcurrent is 10A. The charging time of one battery is 4 hours.


An intelligent charger is used for this.

36 Ah

BATTERY &
TWO BATTERIES

150 KM

MAX. RANGE
(45 KM/H)

4 H

(ONE BATTERY)
CHARGING TIME

SAFE RIDING

Dual hydraulic shock absorbers front and rear provide the driver with an excellent and safe drivingexperience, regardless of road conditions.

EK3_05

Product Specification

PERFORMANCE
Top Speed95km/h
Range150km(with 2 batteries)
DIMENSION
L*W*H1900mm*690mm*1130mm
Saddle Height780mm
Ground Clearance125mm
Wheelbase1310mm
Weight(G.W)103kg(without battery)
Max.permissible Total Weight291KG
POWERTRAIN
MotorMid-motor
ControllerFOC
Max Power6.3kW
Continue Rated Power4.0kW
Battery72V,36Ah
Charging Time(8A)≈4.5h
Ride Mode1/2/3/R
CHASSIS
Brake SystemCBS+disc Brakes
WheelsTire100/80-14
110/70-13
RimAluminium Alloy
SMART&FEATURES
Safety SystemGPS+Transaction Alarm
Touch-start Display
USB5V/1A
Keyless Go
All-around LED Lights
