45km/h
Top Speed
166 km
Range
*2 Batteries
3.0 KW
Peak Power
* Complete vehicle renovation design, intelligent system linkage deployment, customized complete solution (with minimum order quantity)
HIGH POWER HUB MOTOR, VISIBLE STRONG DRIVING FORCE
HORWIN EK1 is equipped with high performance hub motor of Max power 3000w. The motor has high energy exchange efficiency with low power consumption and boosts instantaneously super driving force.
45 KM/h
3.0 KW
106 N·m
13°
HIGH VOLTAGE INTELLIGENT
LITHIUM BATTERY
HORWIN EK1 is equipped with 72V high voltage intelligent lithium battery. With 36Ah volume, the max range reaches 90km. It's also optional with two removable batteries available for charging simultaneously. The SOC monitoring system and modern BMS system can effectively reduce failures and provide multiple protection.
72V 36Ah
166 KM
INTELLIGENT THREE LENSES
LEDHEAD LIGHT
Automobile class intelligent LED headlight with high intensity light source cutting through the darkness of the night and an automatic light switch-off delay guarantee your safety during driving.
HIGH-QUALITY K195B FRAME IMPROVED STABILITY
Over 2 million vibration tests and more than 6,000 km of actual road tests under diverse road conditions bring you a safe and steady riding experience.
281Kg
Aluminium Alloy
NEW SMART DASH BOARD
The LCD display shows all kinds of driving informa- tion, and driving data is always available at any- time. With three colors (green, blue and yellow) showing on the display, different colors of light indi- cate different speed. It is the combination of fash- ion and technology.

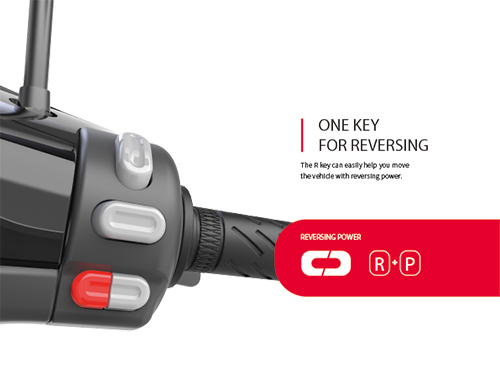

ONE KEY FOR REVERSING

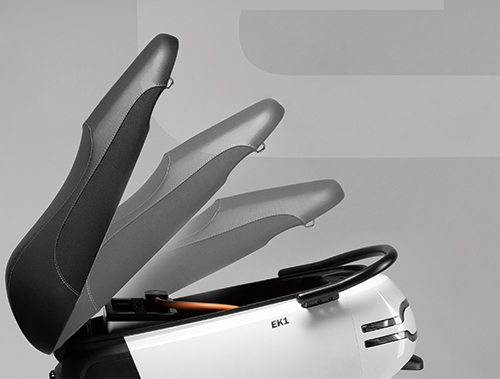

LARGE CAPACITY SEAT BUCKET
FROSTED BRIGHT COLOR
Product Specification
| PERFORMANCE | ||||
| Top Speed | 45km/h | |||
| Range | 90km(with 40 kph) | |||
| DIMENSION | ||||
| L*W*H | 1900mm*690mm*1130mm | |||
| Saddle Height | 780mm | |||
| Ground Clearance | 125mm | |||
| Wheelbase | 1310mm | |||
| Weight(G.W) | ≤92kg(without battery) | |||
| POWERTRAIN | ||||
| Motor | Hub Motor | |||
| Controller | FOC | |||
| Max Power | 3.0kW | |||
| Continue Rated Power | 2.0kW | |||
| Battery | 72V,36Ah(optional with second battery) | |||
| Charging Time(8A) | ≈4.5h | |||
| Ride Mode | 1/2/3/R | |||
| CHASSIS | ||||
| Brake System | Disc Brake | |||
| Wheels | Tire | 100/80 R14 | ||
| 110/70 R13 | ||||
| Rim | Aluminium Alloy | |||
| SMART&FEATURES | ||||
| Safety System | GPS+Transaction Alarm | |||
| Touch-start Display | ● | |||
| All-around LED Lights | ● | |||
