90km/h
Top Speed
45*2 AH
Battery
7.0 KW
Peak Power
* Complete vehicle renovation design, intelligent system linkage deployment, customized complete solution (with minimum order quantity)

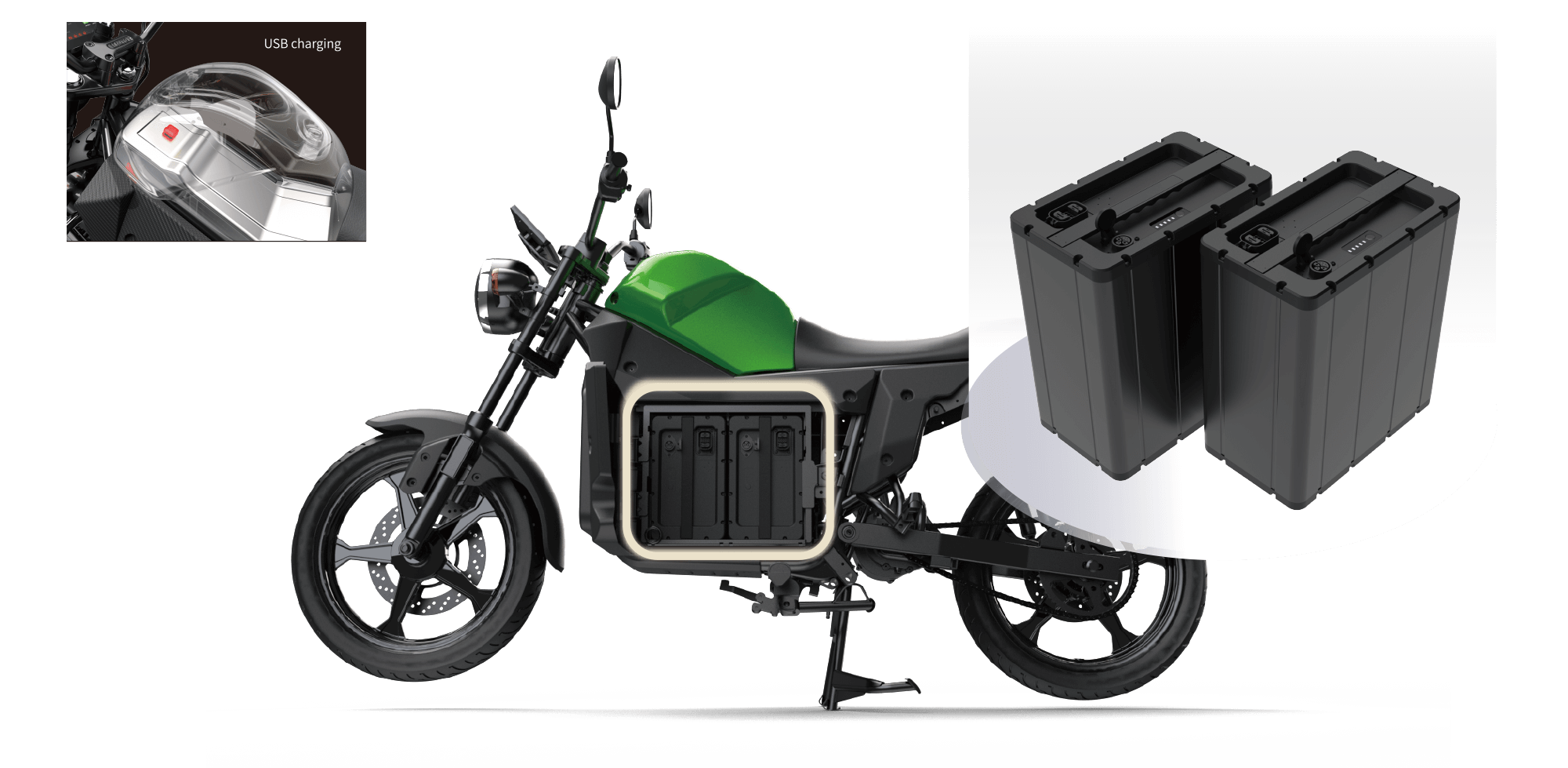

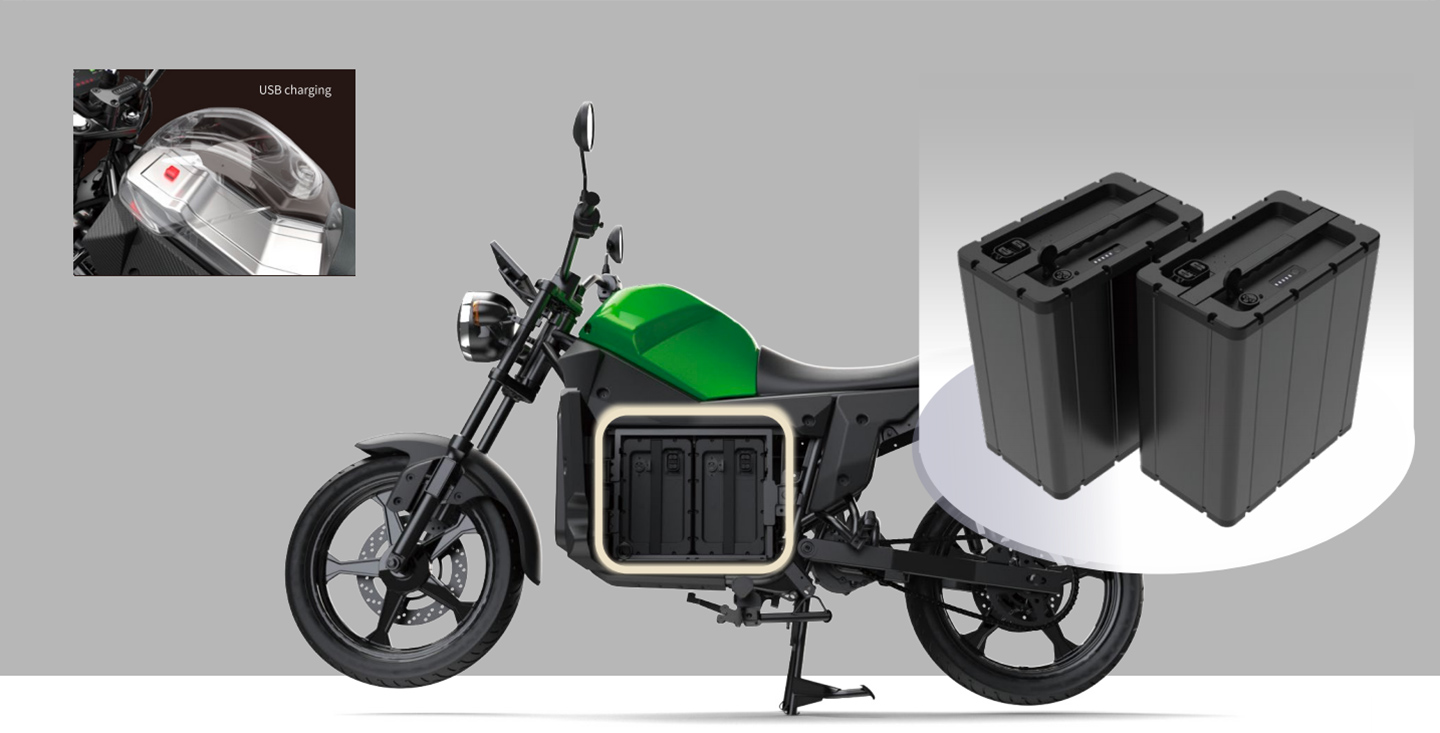

DUAL BATTERY
COMPARTMENT DESIGN
POWER
NEW HIGH-PERFORMANCEMOTORS
QBD1 with Middle drive motor with a Rated Power of 4500W. The topspeed can reach 90km/h, and the climbing performance is 28% (singlerider).lt has programmable energy recuperation (the motor runs in thisrecuperation mode).
CONVERSION EFFICIENCY

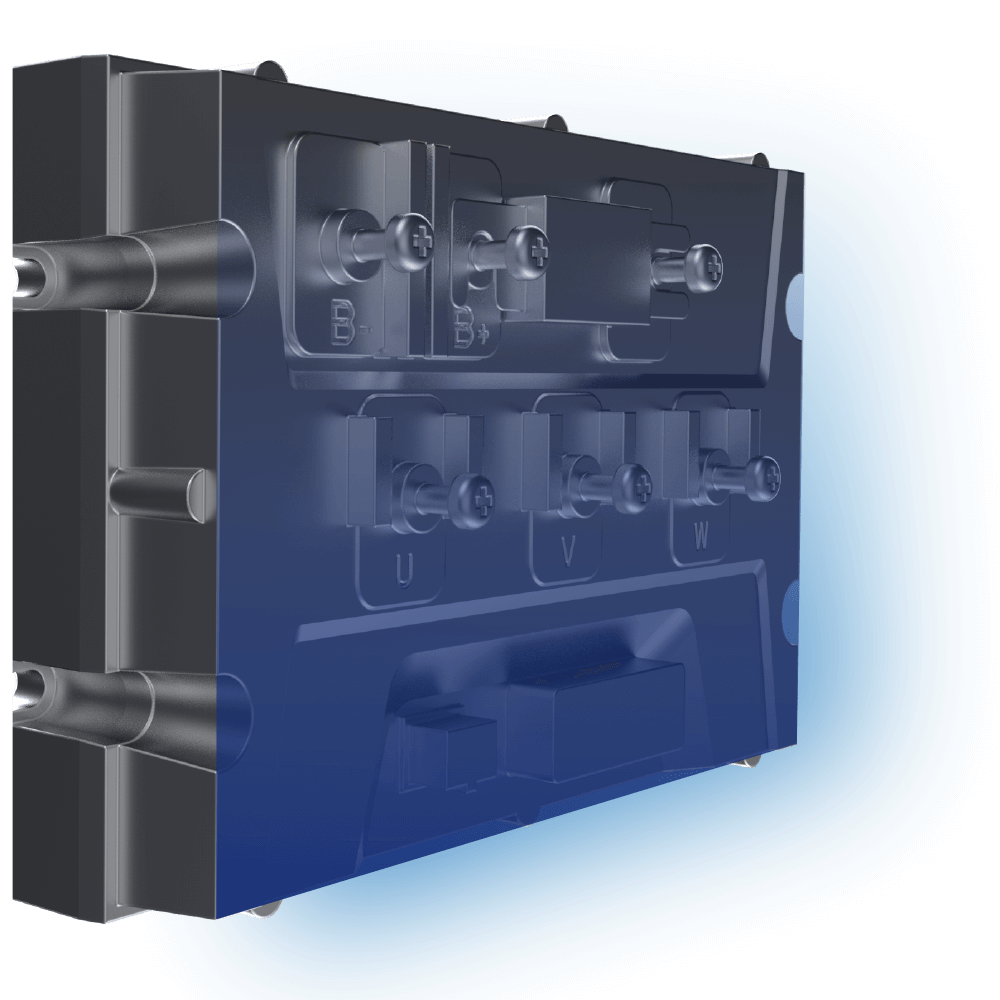

SMART CONTROLLINGUNIT (FOC)
QBD1's proprietary FOC controllers dynamically manage powerful motorsproviding smooth acceleration and an incredible riding experienceOptimized performance conversions up to 90%.
PRODUCT ADVANTAGES
Large Load Capacity
Up to 150kg (2 riders and 2 batteries).
Strong Trafficability
Minimum ground clearance of 165mm (QBD1).
Waterproof
Battery and motor controller are equipped with waterproof rating of IP67, while the vehicle equipped with waterproof rating of IP54.
Excellent Durability
High-strength carbon steel by over 2 million vibration tests.
Strong Climbing Ability
Climbing up to 21 degrees.
Various Accessories
Optional accessories like bumper, rear rack, and oversized rear passenger foot board.
FEATURES
ELECTRIC DRIVE SYSTEM
No need to gear up frequently, just twist the handle and go, easy to operate.

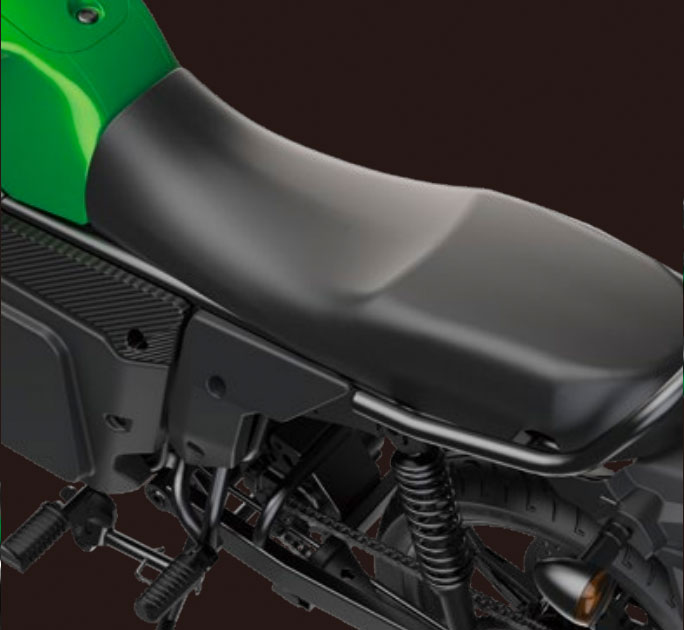

EXTRA-WIDE SEAT CUSHION
Length 712mm leather seat cushion with 6.9cm foam padding for an excellent ft and comfor.Waterproof PU leather, easy to cope with the long rainy season.
ALL-LED LIGHTING
Theoreticallife of more than 50,000 hours, about 5 times that of halogen lamps, headlight brightness reaches 20,000cd.
ALMOST NOISELESS
The e-vehicle moves almost noiselesslyEven at top speed,thetyre noise is the only thing you hear
NO SMELL
No exhaust fumes means noemissions. Smelly clothes are alsoa thing of the past.
LOW MAINTENANCE COSTS
The engine is maintenance-free.Only the tyres and some partsof thebrake system need to be replacedfrom time to time.
LOW RUNNING COSTS
No exhaust fumes means noemissions. Smelly clothes are alsoa thing of the past.
LOW INSURANCE COSTS
Normally, insurance costs are muchlower than forpetrol-driven vehicles(depending on the country)
ENVIRONMENTALLY FRIENDLY
The e-vehicle drive is probably themost sustainable andenvironmen-tally friendly way to get from A to B.
SCENARIO
Delivery Scooter
Motorcycle Taxi
Swapping Cabinet
Leasing Vehicle
Product Specification
| SPECIFICATIONS | ||||||
| Color | Green 、Blue 、Yellow 、Red 、White 、Black | |||||
| Size | L:2200mm W:765mm H:1105mm Seat Hight:765mm | |||||
| Motor Type | Mid-motor | |||||
| Controller | FOC | |||||
| Battery | NCM Battery 72V 45AH*2 | |||||
| MEASUREMENTS | ||||||
| Front hub | MT 2.5x16 | Wheelbase | 1450mm | |||
| Rear hub | MT 2.75x16 | Minimum Ground Clearance | 160 mm | |||
| Front tire size | 100/80-16 | Max.permissible Total Weight | 297 KG | |||
| Rear tire size | 120/80-16 | Rim | Aluminium Alloy | |||
| ELECTRONIC PARTS SPECIFICATION | ||||||
| Rated Power | 4.5kW | Braking System | CBS | |||
| Max Power | 7.0kW | Charging Time(10A) | About 5.5h*2(2 batteries) | |||
| Top Speed | 90 km/h | Maximum Torque | 320N·m | |||
| Max.range(EEC test) | 125km（at speed of 60km/h）(4.5AH*2) | |||||
| FEATURES | ||||||
| Removable Battery | Yes | USB | 5V/1A | |||
| Lights | LED(front,rear,flashing) | Optional | Front Bumper/Rear Rack | |||
| Screen | TFT | /Foot Rest | ||||
