Nearly 200,000 power battery packs has been delivered

Product Advantages

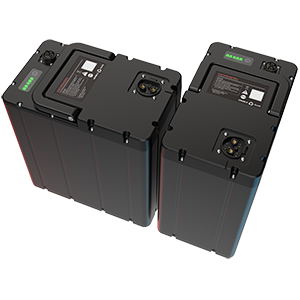

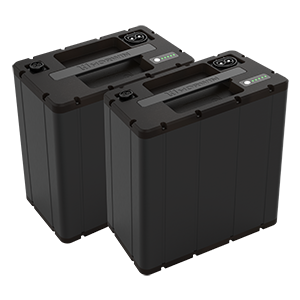

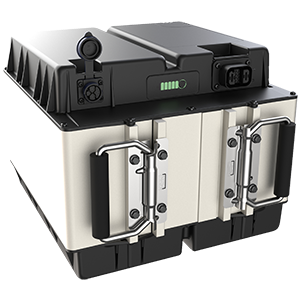

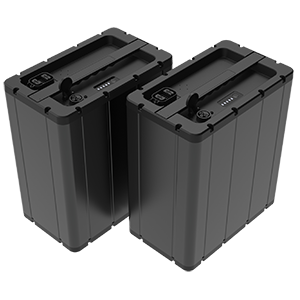

Horwin provide the optional batteries with 5 specifications -72V/27Ah,72V/30Ah, 72V/36Ah, 72V/45Ah and 72V/46Ah.

LFP battery with low cost and long service life; NCM battery with stronger power and higher energy density.

AEC-Q certified battery cell, 30 BMS function protection.

Waterproof rating can be IP67.

Lighter than lead-acid batteries, and much portable.

Performance can still keep above 80%

even after 1,500 charging cycles.

Battery capacity, power performance, color scheme, SaaS services and functions can be flexibly customized according to demands.

Product Specification

Measurements
Model	72V27AH	72V30AH	72V36AH	72V36AH	72V45AH	72V46AH
Material	LFP battery	LFP battery	LFP battery	NCM battery	NCM battery	LFP battery
Battery pack nominal capacit	27Ah	30Ah	36Ah	36Ah	45Ah	46Ah
Nominal Voltage	72V	72V	72V	72V	72V	72V
Charging temperature range	0-50℃	0~45℃	0~50℃	0~55℃	0~45℃	0-55℃
Battery Final Dimension	266158289.5mm±1mm	266158307mm±1mm	290157265mm±1mm	266157.96289.5mm±1mm	266158289.5mm±1mm	332319258.5mm±2mm
Weight	≤18.5kg	≤19.7kg	≤17.5kg	≤18.85kg	≤18.3kg	≤32kg
Waterproof level	IP67	IP67	IP67	IP67	IP67	IP67
Storage Temperature	≤1month: -20~60℃≤3months: -20~40℃≤1 year: -20~20℃	≤1month: -20~60℃≤3months: -20~45℃≤1 year: -20~25℃	≤1month: -20~60℃≤3months: -20~40℃≤1 year: -20~20℃	≤1month: -20~60℃≤3months: -20~35℃≤1 year: -20~25℃	≤1month: -10~55℃≤3months: -10~45℃≤1 year: 0~30℃	-20-45°℃(≤3 months)25±5°℃(≥3 months)
Storage Humidity	0~70% RH	60±20%RH	0~70% RH	65%±20%RH	10%~95%RH	65%±20%RH
