High-efficient battery swap system for safe, convenient and low-carbon mobility.
The standard cabinet is equipped with 9 cases and is also available for flexible customization.
Product Advantages
< 2.5 h
CHARGING TIME（36AH）
< 3.0 h
CHARGING TIME（45AH）
mm
LENGTH
mm
WIDTH
mm
HEIGHT
Product Advantages
< 2.5 h
CHARGING TIME
< 3.0 h
CHARGING TIME
Inch
DISPLAY
mm
LENGTH
mm
WIDTH
mm
HEIGHT

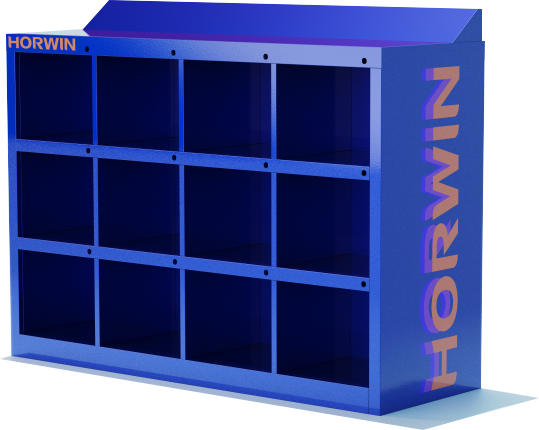

Charging Cabinet
mm
LENGTH
mm
WIDTH
mm
HEIGHT
More Sizes Options

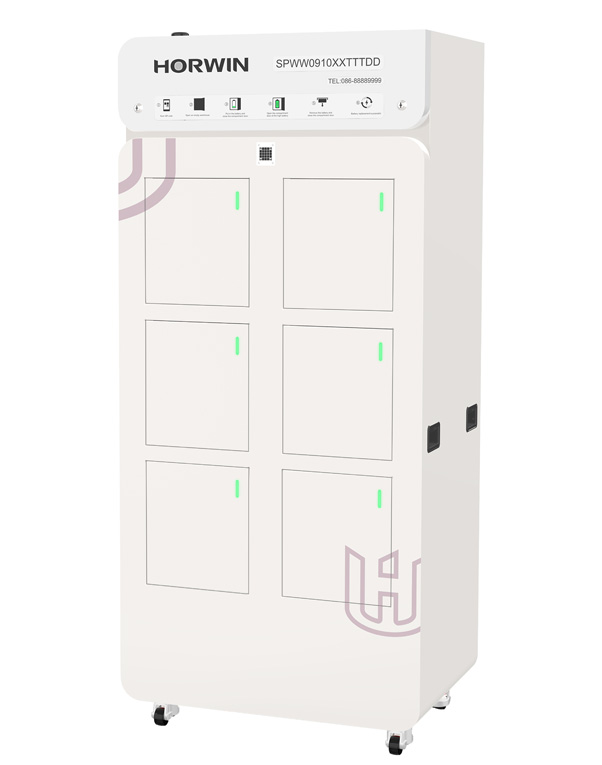

6 piece
POSITION

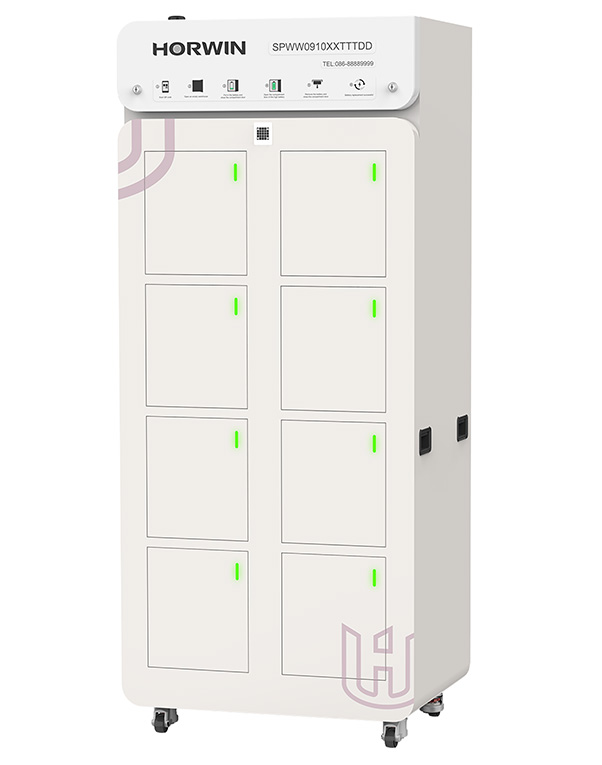

8 piece
POSITION

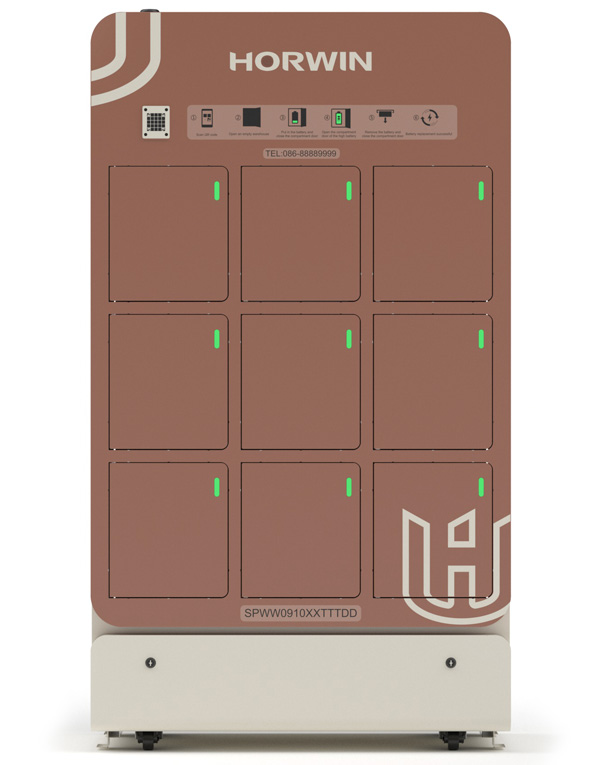

9 piece
POSITION
Product Advantages
SMART CHARGING / SWITCHING
Intelligent battery distribution, automatic handling of abnormal.Bluetooth offline power exchange, support reverse power supply.
12V BACKUP POWER
Reverse battery power supply.
RAPID DEPLOYMENT
Rapidly completing the deployment of IoT communications.Real-time monitoring of operational data.
IOT TECHNOLOGY
IOT-based intelligent diagnosis, intelligent warning, and intelligent processing.
BATTERY DURABILITY
A large capacity long-mileage high insertion/removal cycles high waterproof rating.
CABINET FIRE PROTECTION
Auto-triggered extinguishing system for overheating scenarios.
SAFETY PROTECTION
Independent smoke, temperature, humidity sensor, fire quickly extinguish and cut off the circuit.
SUITABLE FOR 220V VOLTAGE
Easy daily maintenance.
OFFLINE BATTERY SWAP
Network-independent battery replacement capability.
Installation Plan
We will determine the location of the swap stations based on the results of the market research and the factors such as urban planning, traffic flow, power supply, etc., . The following locations will be involved.
Delivery centers and showroom by initial.
Commercial centers/gas stations.
Parking area
*Subject to the actually purchased equipment, the pictures shown here are for reference only.
Product Specification
| ITEM | QUANTITY | OTHER |
| 15.0 inch display(optional) | 1 | O |
| Voice module | 1 | O |
| Cabinet control panel | 1 | O |
| Single bin control panel | 9 | O |
| Android tablet | 1 | O |
| Reverse supply board | 1 | O |
| Smart charger | 9 | 1200W |
| Smart meter | 1 | 485 can |
| Single bin cooling fan | 9 | O |
| Single-bin fire extinguisher | 9 | Hot aerosol fire extinguisher |
| Single compartment door lock | 9 | O |
| Single chamber temperature probe | 9 | O |
| Single bin photoelectric sensor | 9 | O |
| Wifi&4G2-in-1antenna | 1 | O |
| Strong current module | 1 | Leakage protection,surge,shunt release,etc |
| 12v switching power supply | 1 | O |
| 15v switching power supply | 1 | O |
| 12v small battery | 1 | O |
| Cabinet fan | 4 | Choose between air conditioner/fan |
| Refrigeration and air conditioning (optional) | 1 | 600w |
| Water sensor | 1 | O |
| Smoke detector | 1 | O |
| Single-bin charging head cable | 9 | O |
| Single chamber light | 9 | O |
