85 km/h
Top Speed
45*2 AH
Battery
7.0 KW
Peak Power
* Complete vehicle renovation design, intelligent system linkage deployment, customized complete solution (with minimum order quantity)
BATTERY

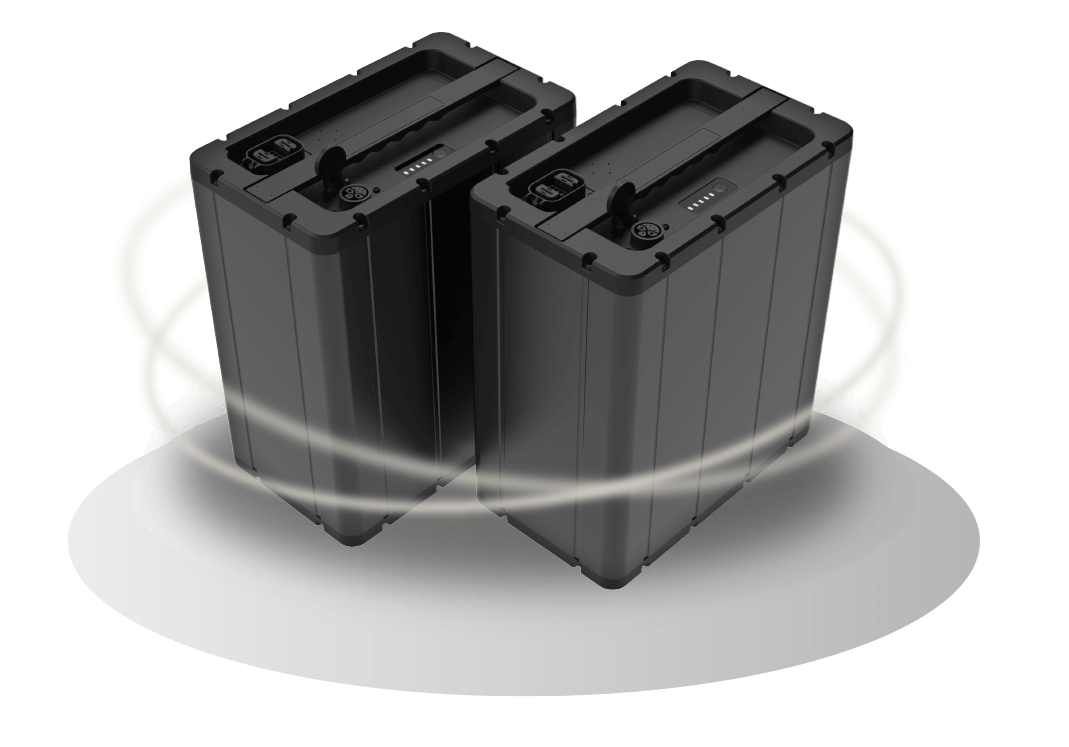

For QBD2, We have designed a flexible battery solution with 72V 45AH dual removable lithium iron phosphate batteries, with automotive grade long lasting lithium cells for long life. The range is up to 130km at speed of 60km/h.
EXCLUSIVITY

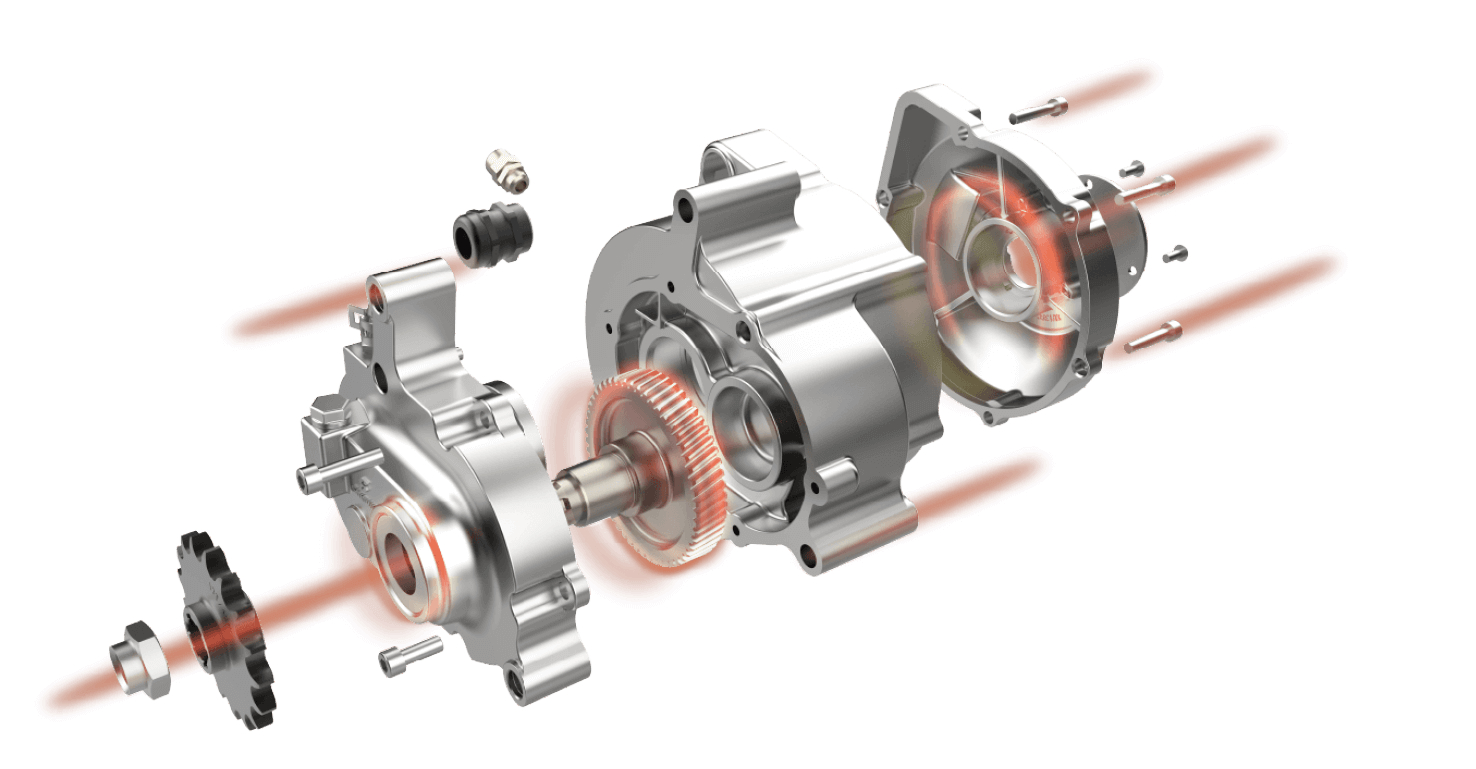

Industry's first mid-motor 2B straddle model, customization available.

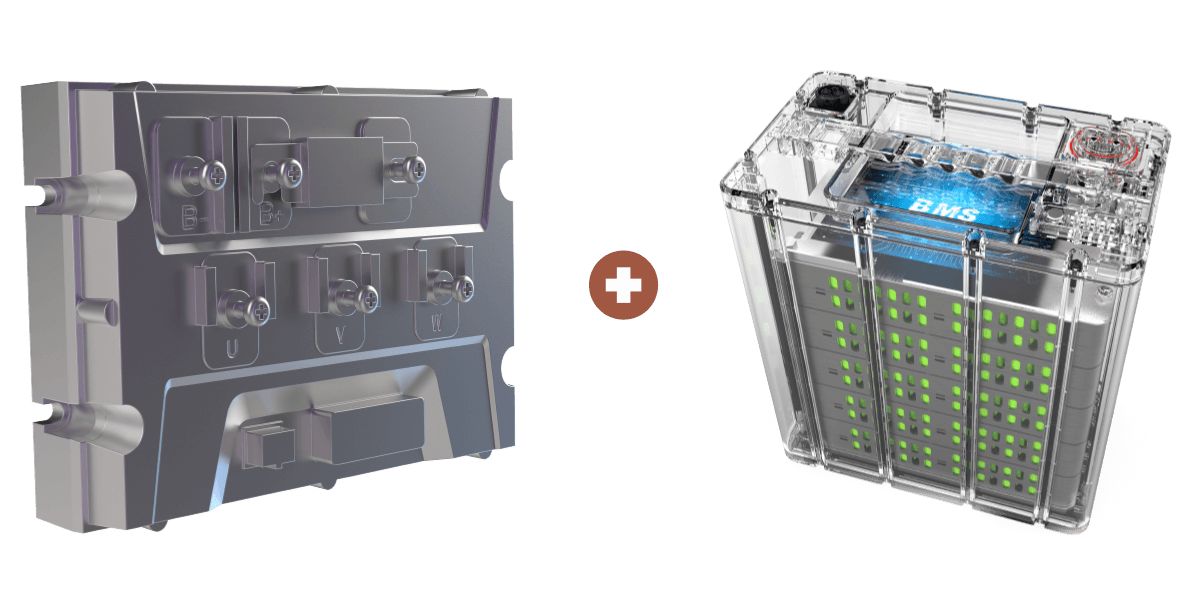

HIGHLY EFFECTIVE
Efficient thermal management system,Energy efficiency is 39% higher than in the industry.
MORE INTELLIGENT
MORE POWERFULL
MORE DURABILITY
FEATURES

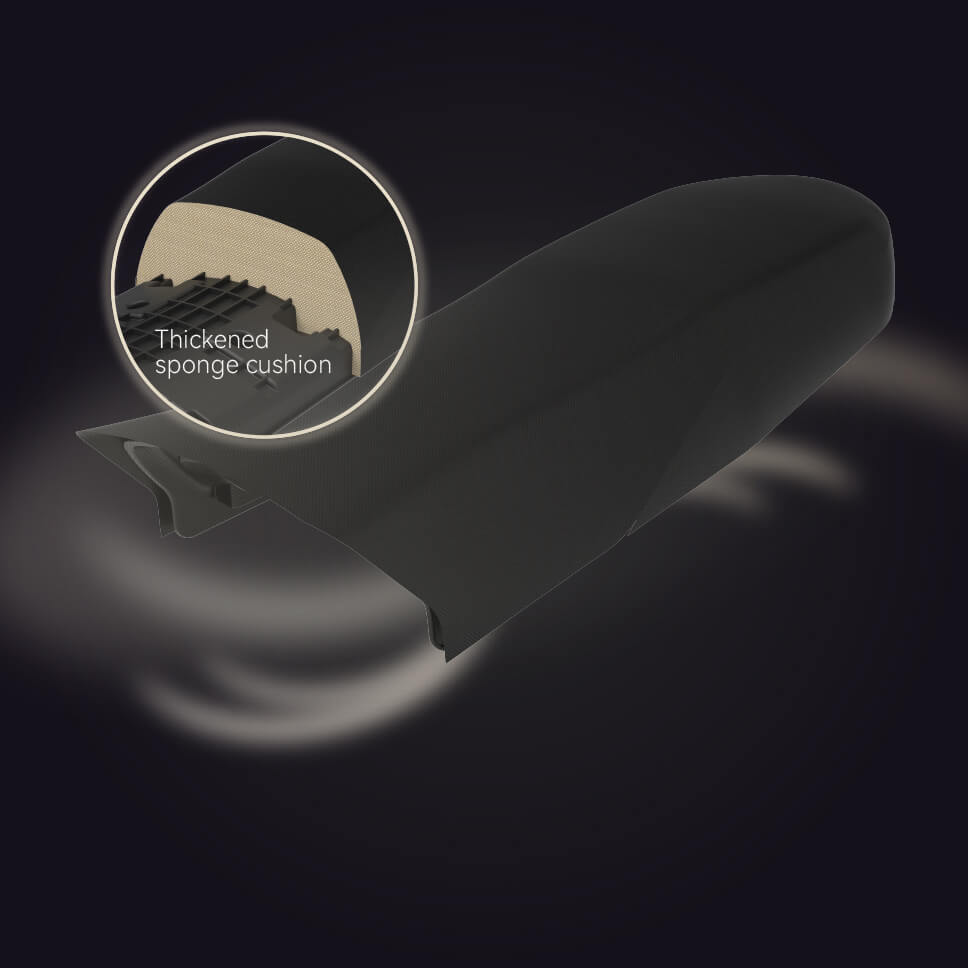

HIGH COMFORT
Large and soft seat for long-distance ride.

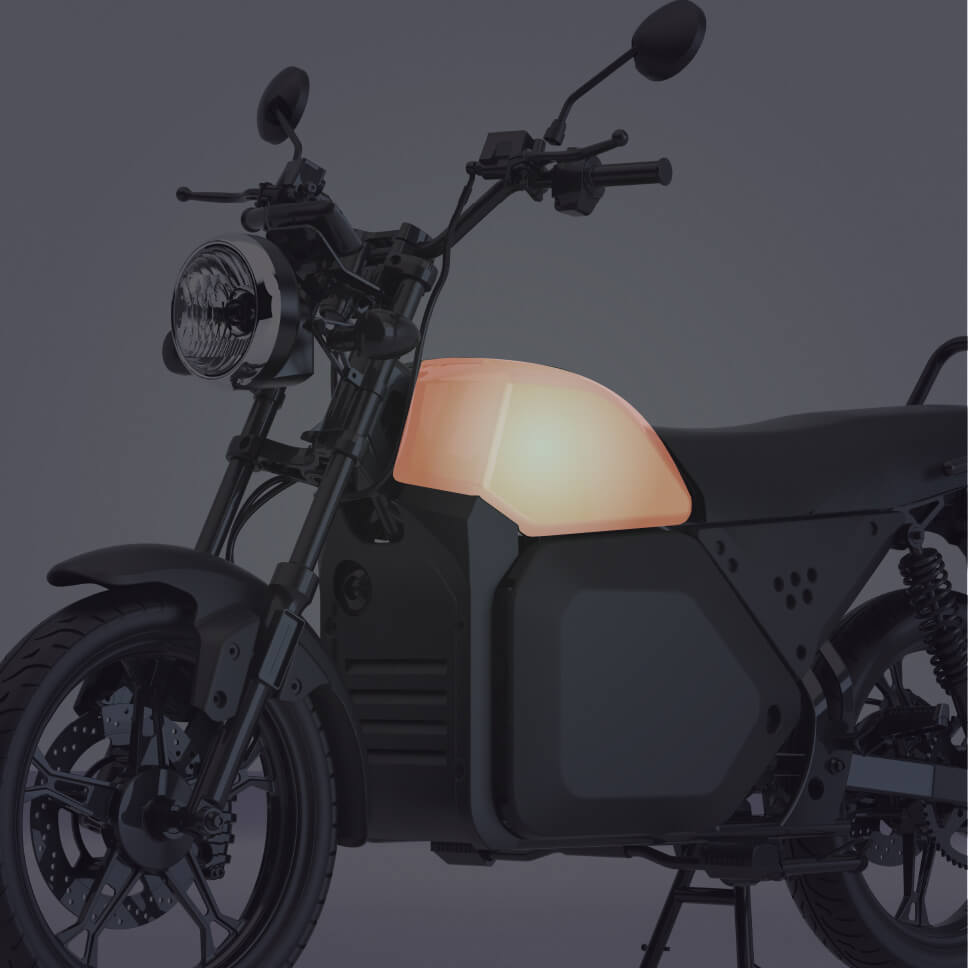

6L ANTI-THEFT STORAGE SPACE
Holds your valuables and riding gear.

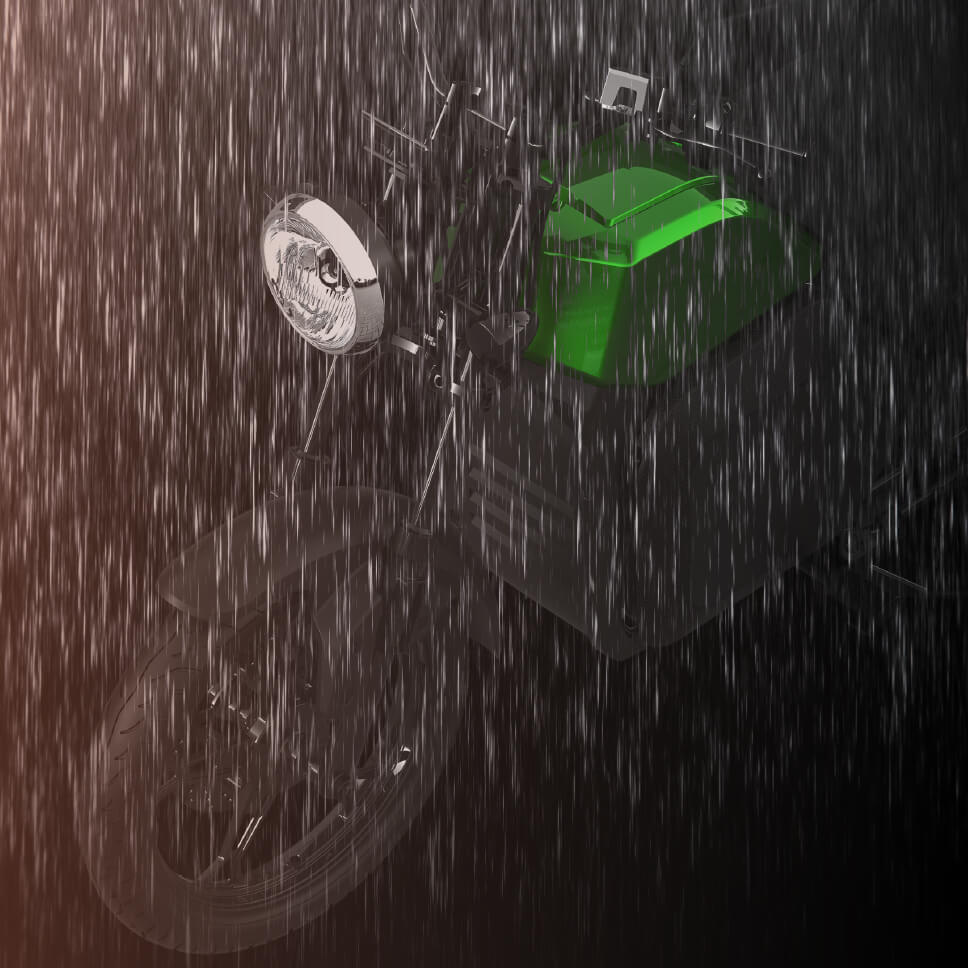

WATEPROOF
Battery and motor controller are equipped with waterproof rating of IP67,while the vehicle equipped with waterproof rating of IP54.
WEAR RESISTANT VEHICLE PAINT
Automotive-grade three-layer paint baking process.

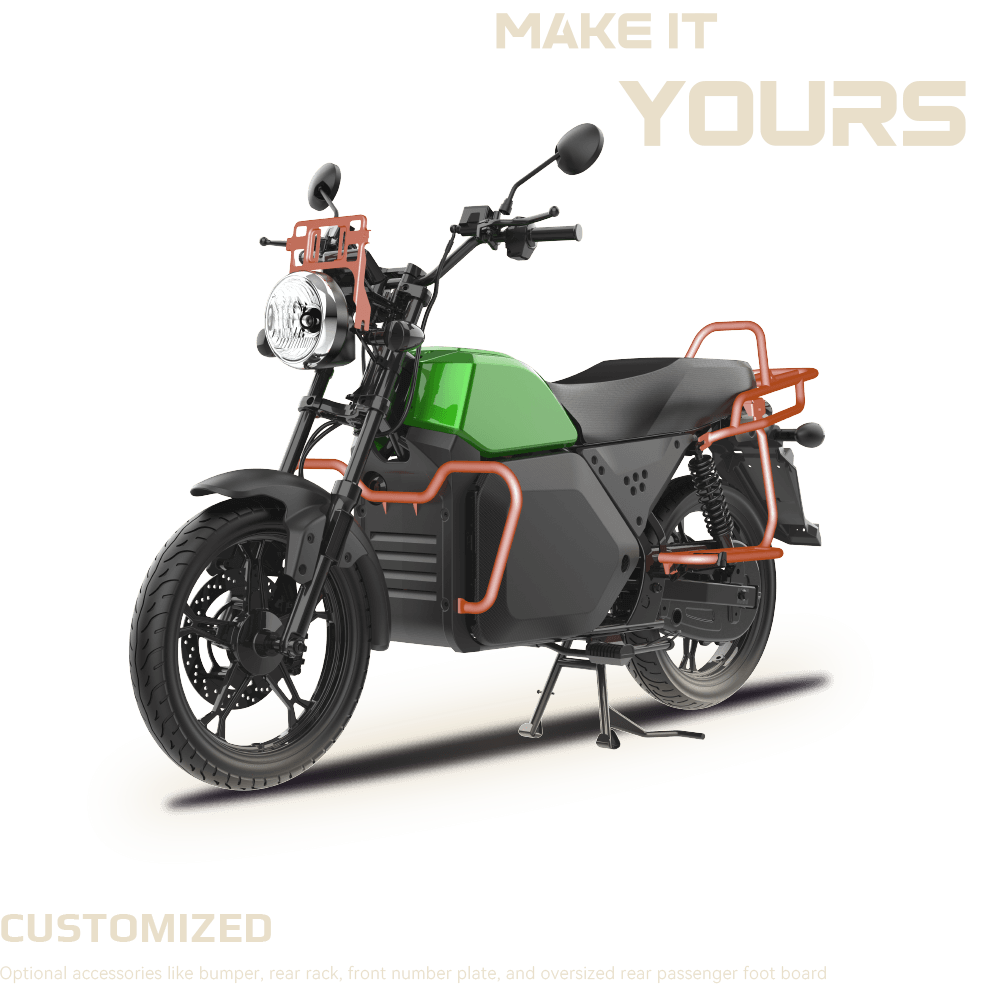

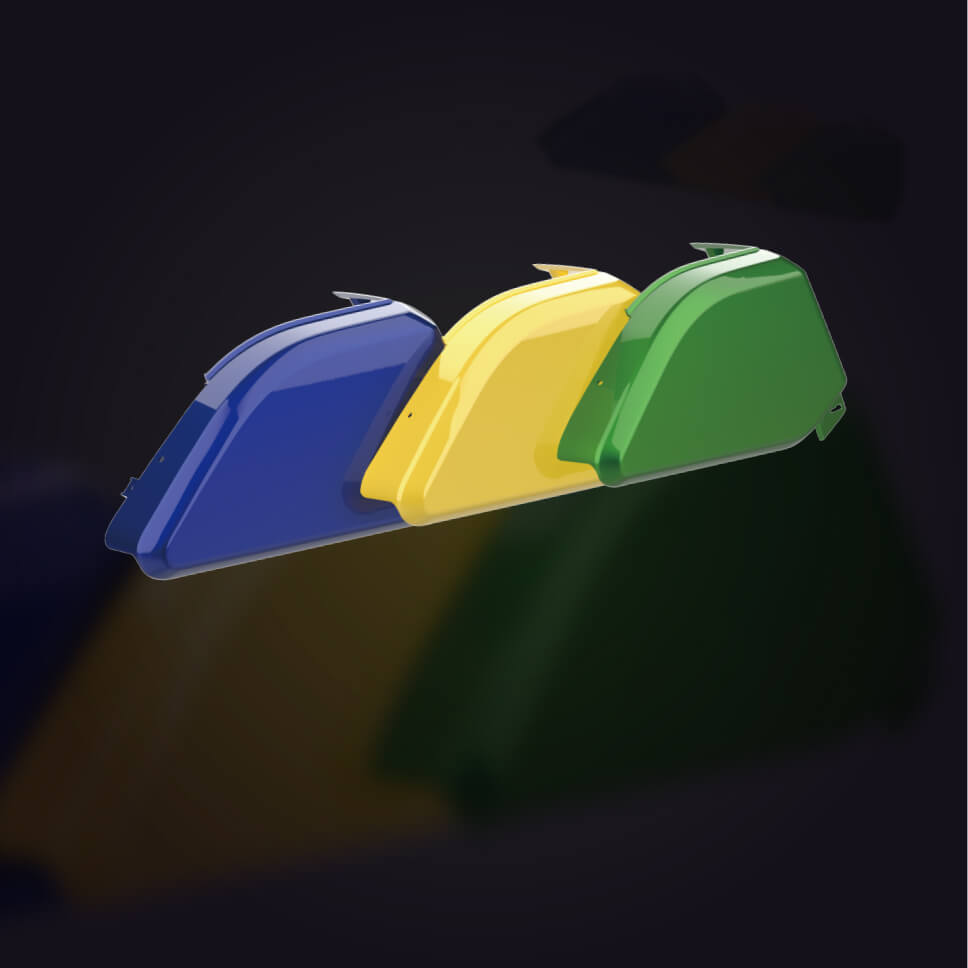

CUSTOMIZED
Product Advantages
ALMOST NOISELESS
The e-vehicle moves almost noiselesslyEven at top speed,thetyre noise is the only thing you hear
NO SMELL
No exhaust fumes means noemissions. Smelly clothes are alsoa thing of the past.
LOW MAINTENANCE COSTS
The engine is maintenance-free.Only the tyres and some partsof thebrake system need to be replacedfrom time to time.
LOW RUNNING COSTS
No exhaust fumes means noemissions. Smelly clothes are alsoa thing of the past.
LOW INSURANCE COSTS
Normally, insurance costs are muchlower than forpetrol-driven vehicles(depending on the country)
ENVIRONMENTALLY FRIENDLY
The e-vehicle drive is probably themost sustainable andenvironmen-tally friendly way to get from A to B.
SCENARIO

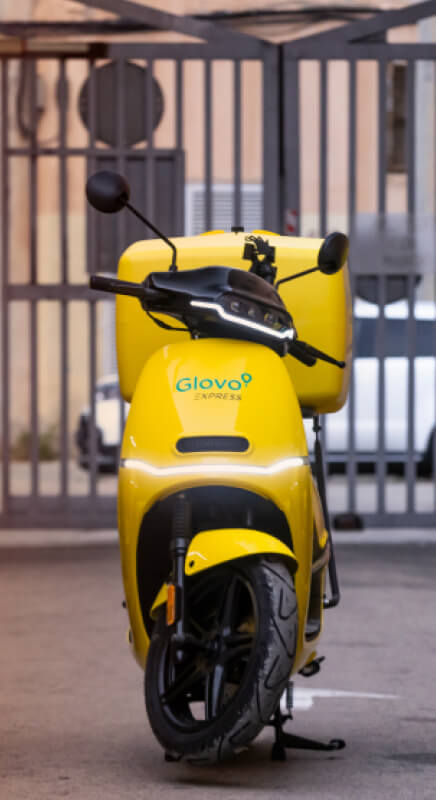

Delivery Scooter
Motorcycle Taxi
Swapping Cabinet
Leasing Vehicle
Product Specification
| SPECIFICATIONS | ||||||

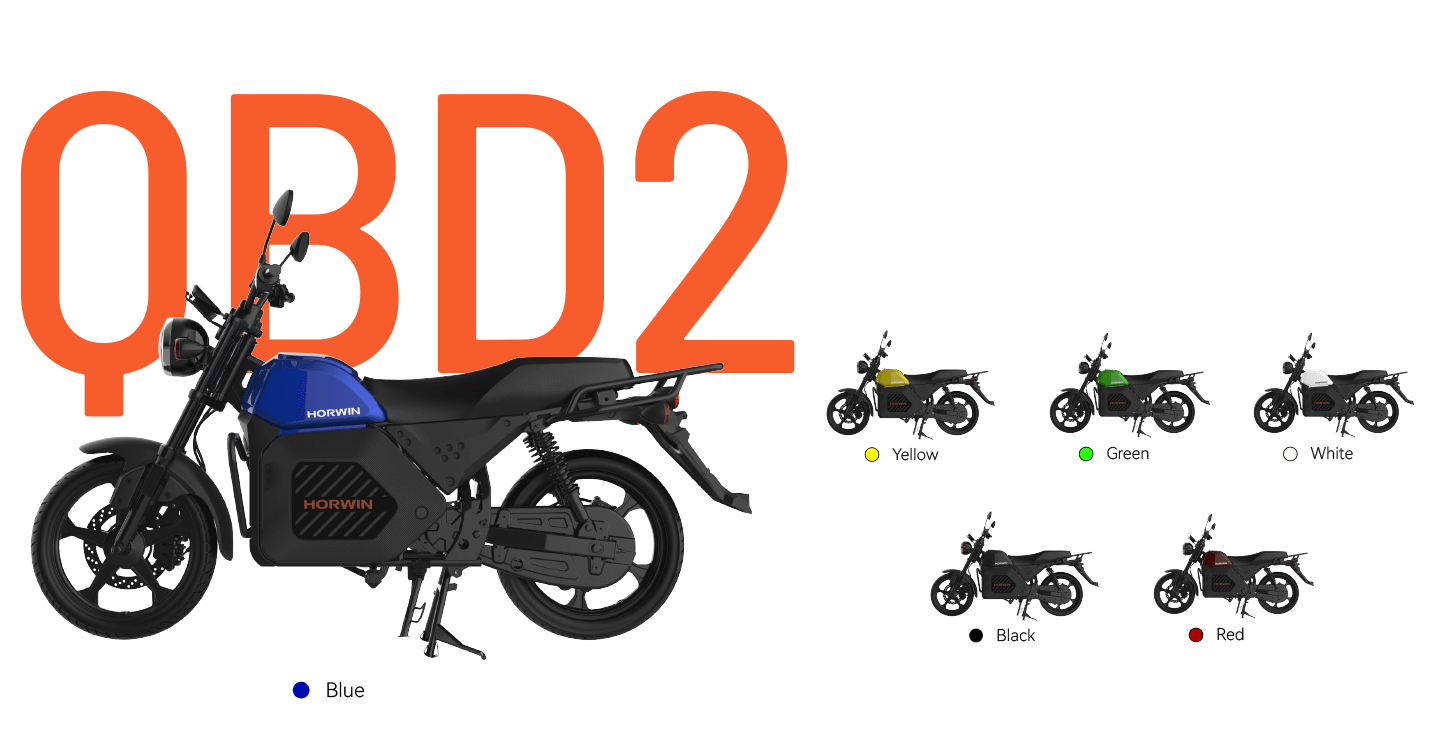

| Color | Green 、Blue 、Yellow 、Red 、White 、Black | |||||
| Size | L:2090mm W:770mm H:1090mm Seat Hight:760mm | |||||
| Motor Type | Mid-motor | |||||
| Controller | FOC | |||||
| Battery | NCM Battery 72V 45AH*2 | |||||
| MEASUREMENTS | ||||||
| Front hub | MT 1.85x16 | Wheelbase | 1350mm | |||
| Rear hub | MT 2.15x16 | Minimum Ground Clearance | 145 mm | |||
| Front tire size | 80/90-16 | Max.permissible Total Weight | 282 KG | |||
| Rear tire size | 100/80-16 | Rim | Aluminium Alloy | |||
| ELECTRONIC PARTS SPECIFICATION | ||||||
| Rated Power | 4.5kW | Braking System | CBS | |||
| Max Power | 7.0kW | Charging Time(10A) | About 5.5h*2(2 batteries) | |||
| Top Speed | 85 km/h | Maximum Torque | 320N·m | |||
| Max.range(EEC test) | 130km（at speed of 60km/h）(4.5AH*2) | |||||
| FEATURES | ||||||
| Removable Battery | Yes | USB | 5V/1A | |||
| Lights | LED(front,rear,flashing) | Optional | Front Bumper/Rear Rack | |||
| Screen | LED | /Foot Rest | ||||
