EK - Battery - Horwin Electric Mopeds Battery Packs For Sale, Waterproof and High Security.

CBS Brake System

Intelligent Control

Max Range 150km

2 Batteries

95km/h

Top Speed

Highly efficient & economical

The centre motor generates 6.2 kW of power at a top speed of 95 km/h. Acceleration from 0 to 60 km/h in 6 seconds.

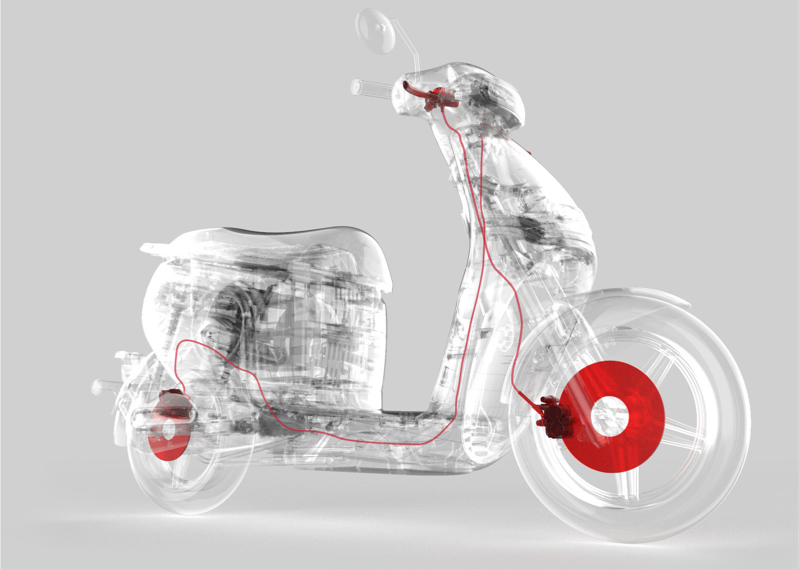

CBS brake system

The front and rear disc brakes shorten the braking distance. The CBS braking system ensures safe braking at high speed.

In double pack

The EK is equipped with an intelligent lithium battery.
The range can be significantly increased with an optional second battery.

Safe riding

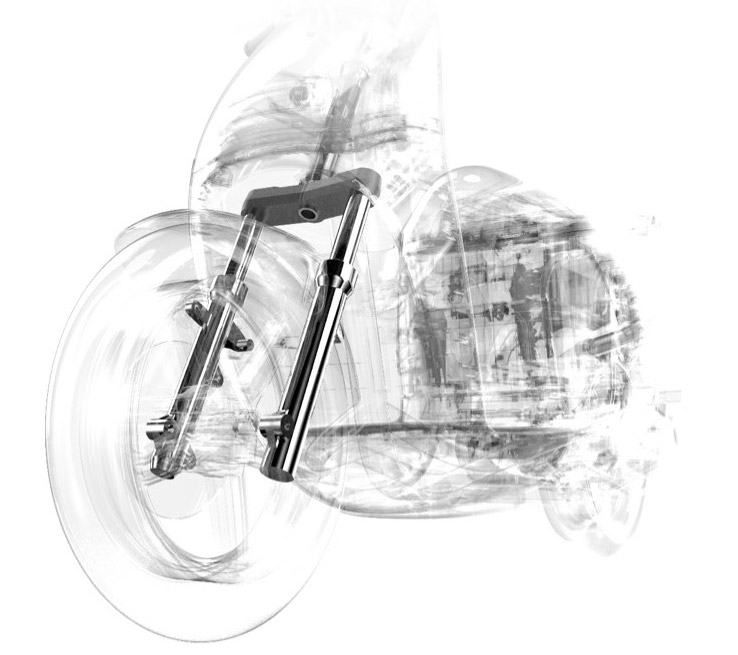

Dual hydraulic shock absorbers front and rear provide the driver with an excellent and safe driving experience, regardless of road conditions.

Plenty of space

The storage space under the seat is very large with a volume of 30 litres. It offers space for different items or a second battery.

Intelligent display
The EK3 can be started with a swipe of the finger on the display. The display also shows all the necessary information that is important during the journey.

Ingenious space concept

The large foot board and wide seat are ergonomically designed. Upper body and legs are relaxed. This means that the EK3 offers a more comfortable riding experience.

Specification


Motor Type	Centre Motor	Hub Motor
Max. Range (EEC test)	76km (1 battery with 36Ah) 150km (2 batteries with 36Ah)	83km (1 battery with 36 Ah) 69km (1 battery with 26 Ah)
Charging Time	4.5h	36Ah/6.5h 26Ah/5h
Max. Speed	95km/h	45km/h
Battery (optional with second battery)	72V,36Ah	72V,26Ah 72V,36Ah
Max. Power	6.2kW	2.8kW
Braking System	CBS oil brake	Disc brake
Weight	284kg	281kg
Tyre	Front：100/80-14 Rear：110/70-13	Front：100/80-14 Rear：110/70-13

* In the dual-battery version, a battery can be purchased on the basis of the single-battery version to obtain a higher range.

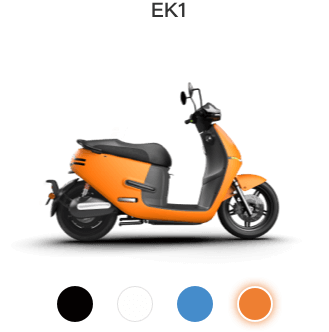

Taking EK1 as an example, a 36AH battery can be purchased on the basis of a 36AH single-battery version.
For more details, please contact your local dealers/shops.
